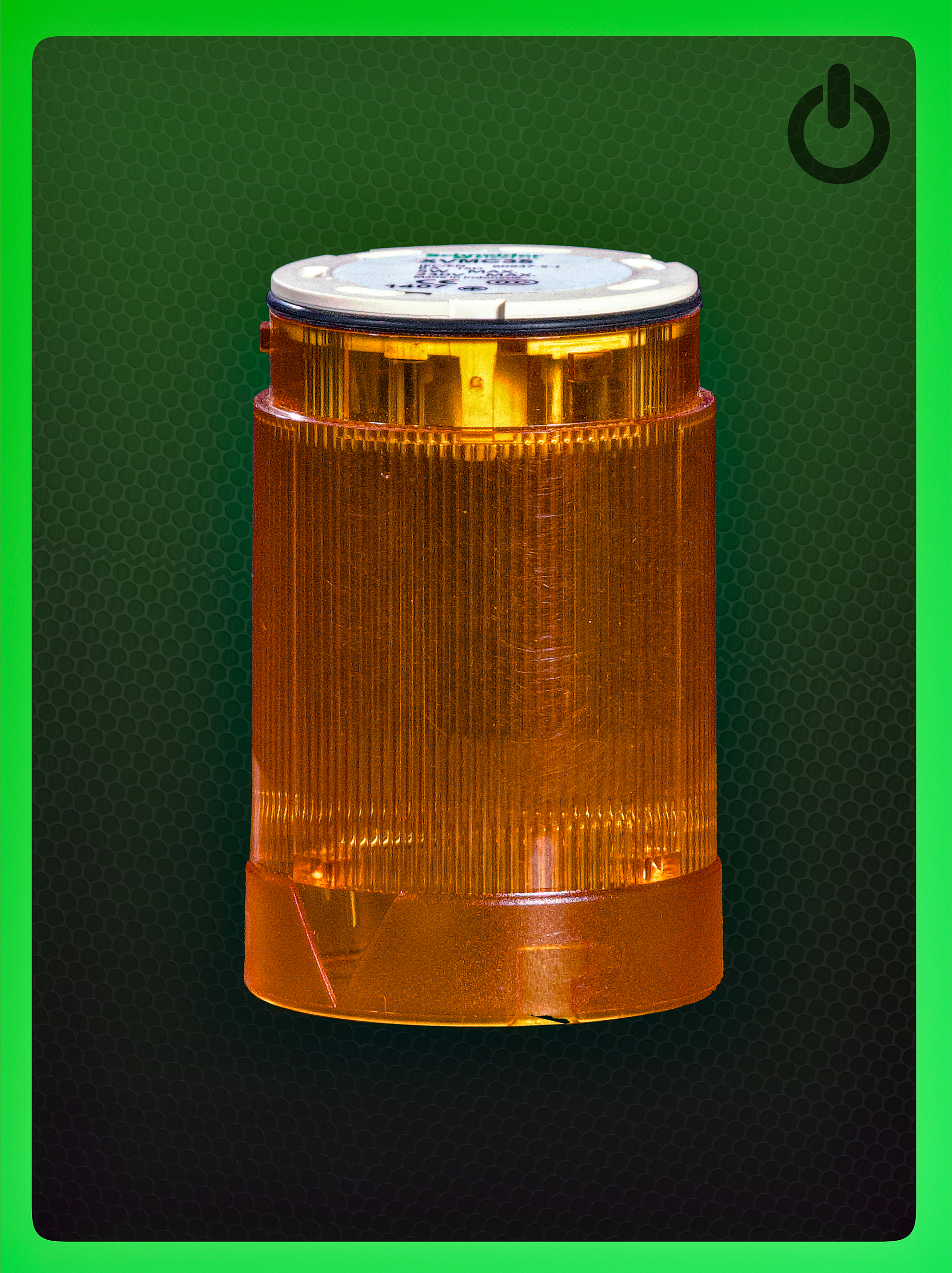

YELLOW LENS front

YELLOW LENS

This Harmony XVMC35 is an illuminated unit, diameter 45mm, yellow, BA 15d bulb not included, 230V AC DC. It is part of the range Harmony XVM diameter 45mm pre-wired modular tower light.
SKU: XVMC35

  • Product Info

    Range of product Harmony XVM
    Product or component type Indicator bank
    beacon or indicator bank unit type Illuminated unit
    Component name XVM
    Light source Bulb not included, orange
    Bulb type Incandescent with BA 15d base
    Super bright LED
    Flash discharge tube
    [Us] rated supply voltage <= 230 V AC/DC
    Complementary
    Mounting diameter 45 mm
    Assembly style Customer assembly
    Maximum power dissipation in W 5 W
    Connections - terminals Screw terminals, 1 x 0.325...1 x 1.5 mm²
    Marking CE
    [Ui] rated insulation voltage 250 V conforming to IEC 60947-1
    Nominal voltage limit 0.85...1.1 Un conforming to IEC 60947-5-1
    [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
    Luminance 650 cd/m²
    CAD overall width 47 mm
    CAD overall height 65 mm
    CAD overall depth 47 mm
    Net weight 0.04 kg
    Environment
    product certifications CCC
    Standards IEC 60947-5-1
    IEC 60947-1
    Ambient air temperature for storage -25…70 °C
    Ambient air temperature for operation -10…50 °C
    IP degree of protection IP40 any position except vertical position conforming to IEC 60529
    IP42 vertical position conforming to IEC 60529
    Electrical shock protection class Class I aluminium tube mounting conforming to IEC 60947-1
    Class I aluminium tube mounting conforming to IEC 60947-5-1
    Class I aluminium tube mounting conforming to IEC 61140
    Class II base mounting conforming to IEC 60947-1
    Class II base mounting conforming to IEC 60947-5-1
    Class II base mounting conforming to IEC 61140
    protective treatment TC
    Packing Units
    Unit Type of Package 1 PCE
    Number of Units in Package 1 1
    Package 1 Height 5.100 cm
    Package 1 Width 7.200 cm
    Package 1 Length 10.100 cm
    Package 1 Weight 48.000 g
    Unit Type of Package 2 S01
    Number of Units in Package 2 25
    Package 2 Height 15.000 cm
    Package 2 Width 15.000 cm
    Package 2 Length 40.000 cm
    Package 2 Weight 1.440 kg
