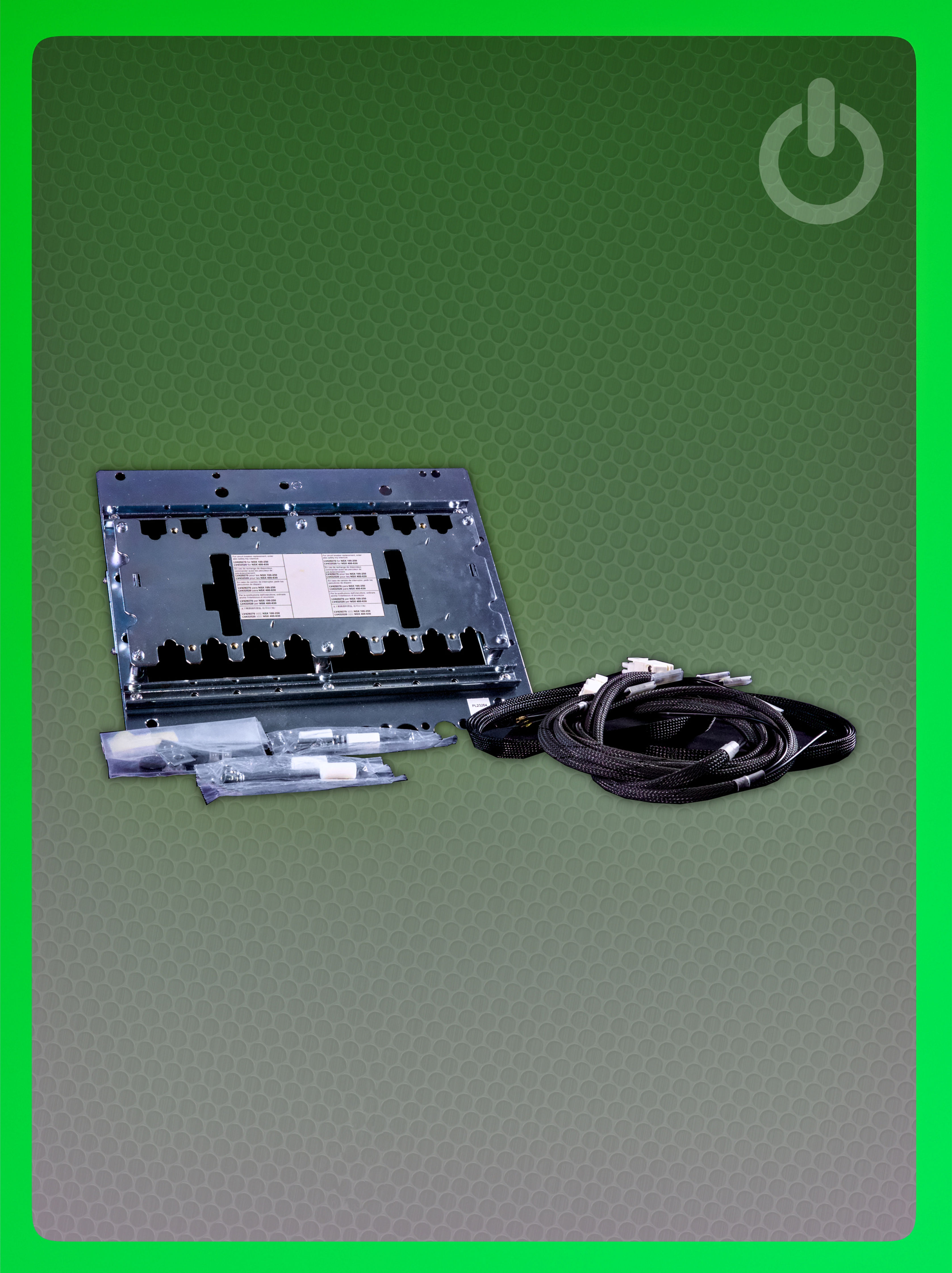

PLATE + MECHANICAL INTERLOCK perspective 1

PLATE + MECHANICAL INTERLOCK

It is a mechanical interlocking system for two Compact NSX 100/160/250 devices with a base plate. The authorized positions are one device OFF (closed) and the other ON (opened), or the two devices OFF (closed). Interlocking is carried out on the base plate by a mechanism located behind the devices. The base plate can be installed horizontally or vertically on a mounting rail.
SKU: 29349

  • Product Info

    Range of product ComPact NSX100...250
    Range ComPact
    Product or component type Plate
    Device application Interlocking
    Range compatibility ComPact ComPact NSX circuit breaker
    circuit breaker
    Accessory / separate part category Interlocking accessory
    [Us] rated supply voltage 24...250 V DC
    48...415 V AC at 50/60 Hz
    440 V AC at 60 Hz
    Complementary
    Range compatibility Compact NSX
    Product compatibility Compact NSX100...250
    Packing Units
    Unit Type of Package 1 PCE
    Number of Units in Package 1 1
    Package 1 Height 31.0 cm
    Package 1 Width 11.0 cm
    Package 1 Length 38.0 cm
    Package 1 Weight 4.076 kg
    Unit Type of Package 2 P12
    Number of Units in Package 2 21
    Package 2 Height 50.0 cm
    Package 2 Width 80.0 cm
    Package 2 Length 120.0 cm
    Package 2 Weight 103.0 kg
    Logistical informations
    Country of origin US
