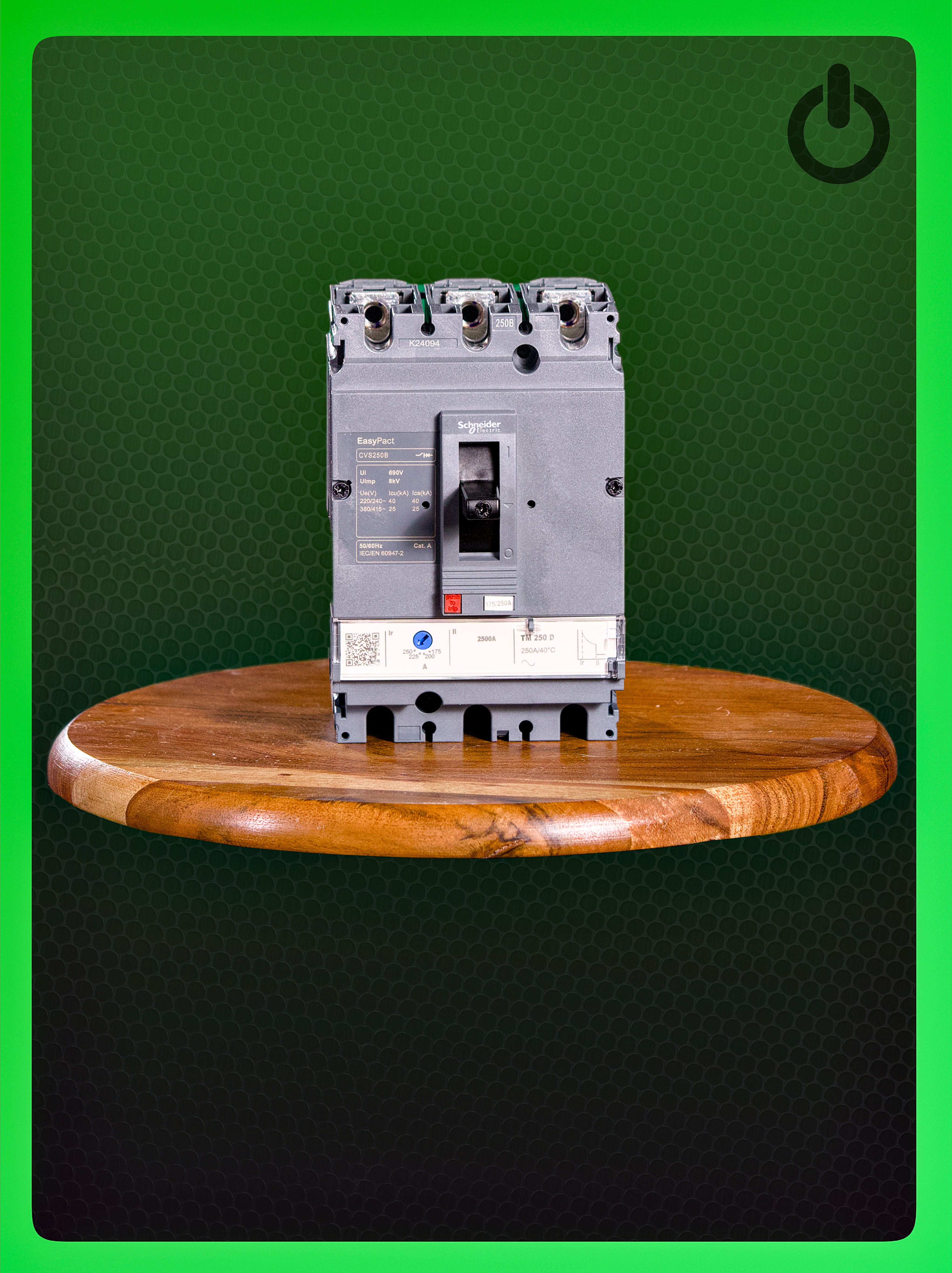

EasyPact CVS250B is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 250A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS250B is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
SKU: LV525303

  • Product Info

    Range EasyPact
    Product name EasyPact CVS
    Device short name CVS250B
    Product or component type Circuit breaker
    Device application Distribution
    Poles description 3P
    Protected poles description 3D
    Earth leakage protection (Vigi add on) Without
    [In] rated current 250 A at 40 °C
    Network type AC
    utilisation category Category A
    [Icu] Breaking capacity  40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
    25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
    20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
    Trip unit name TM-D
    Trip unit technology Thermal-magnetic
    Trip unit rating 250 A at 40 °C
    Protection type Short-circuit protection (magnetic)
    Overload protection (thermal)
    Complementary
    [Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-2
    Network frequency 50/60 Hz
    Breaking capacity code B
    [Ics] rated service breaking capacity 15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
    25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
    40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
    Mechanical durability 20000 cycles
    Electrical durability 10000 cycles 415 V In conforming to IEC 60947-2
    Control type Toggle
    Thermal protection adjustment range 175…250 A
    Long time pick-up adjustment type Ir Adjustable
    long time pick-up adjustment range 0.7...1 x In
    Long time delay adjustment type Fixed
    Instantaneous pick-up adjustment type Ii Fixed
    instantaneous pick-up adjustment range 2500 A
    Contact position indicator Yes
    Mounting mode Fixed
    mounting support Backplate
    Upside connection Front
    downside connection Front
    Connections - terminals Screw connection
    Connection pitch 35 mm
    Compatibility code CVS250
    Width 105 mm
    Depth 86 mm
    height 161 mm
    Net weight 1.7 kg
    Environment
    Standards IEC 60947-2
    EN 60947-2
    product certifications IEC
    GOST
    Electrical shock protection class Class II
    Pollution degree 3 conforming to IEC 60664-1
    IP degree of protection IP40
    Ambient air temperature for operation -25…70 °C
    Ambient air temperature for storage -50…85 °C
    Packing Units
    Unit Type of Package 1 PCE
    Number of Units in Package 1 1
    Package 1 Height 11.000 cm
    Package 1 Width 14.000 cm
    Package 1 Length 19.000 cm
    Package 1 Weight 1.935 kg
    Unit Type of Package 2 S03
    Number of Units in Package 2 8
    Package 2 Height 30.000 cm
    Package 2 Width 30.000 cm
    Package 2 Length 40.000 cm
    Package 2 Weight 15.903 kg
    Unit Type of Package 3 P12
    Number of Units in Package 3 64
    Package 3 Height 45.000 cm
    Package 3 Width 80.000 cm
    Package 3 Length 120.000 cm
    Package 3 Weight 139.226 kg
